From Editor - Sending Client Commands to a Client via the AESB Interface

Last modified by Jannis Klein on 2024/08/13 08:28
Content

Initial situation

This Use Case shows you step by step how to send the Form Editor to a Client via the AESB Interface using a Client Command. The available Clients are loaded from the database and displayed in a list. A search field allows the user to filter for specific Client Commands. The hits are retrieved from the database and also displayed in a list. To prevent the Client Commands from being sent inadvertently, the user must tick a checkbox. This is to confirm that the selected Client and Client Command are correct.

For ease of understanding, much of the content of the Form Editor is explained in the Code View.

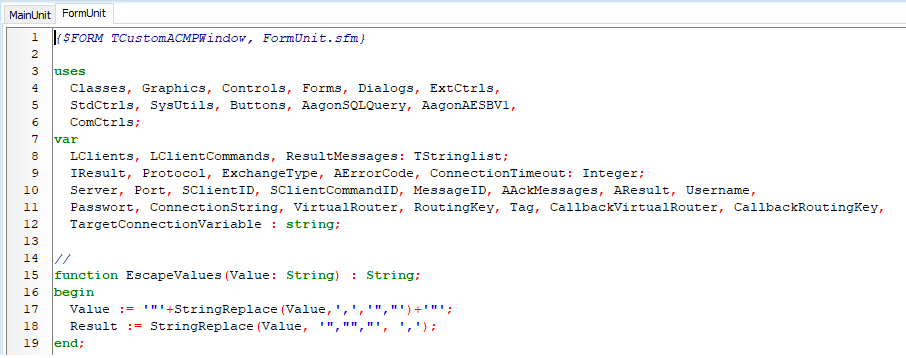

66_Use Case Client Commands_AESB Code Ausschnitt_906.png

Code view for the following Client Command Use Case

Hinweis  Note:

Read here how to install AESB and how the ACMP and AESB components are connected.

Select Script

  1. Navigate to the Client Commands > Create module.
  2. Click Add on the ribbon bar. The Client Command Editor will open and you will need to decide whether it is a Console or Client Script. In this case select the Console Script.

To select and edit the Set project variable Command

  1. Select the Variables > Set project variable command from the Command list..
  2. Double click the Command and select the General tab.
  3. Enter a name under Description of actions. In this example, "Set the AESB user name here" is inserted. All other configuration options in this tab do not need to be customised.
  4. Switch to the Details tab.
  5. Under Variable Settings, click on the icon next to the variable name.
  6. Optional: Create a new variable under Actions. Name it "USERNAME" and click on the plus sign. Then click on the OK button to complete the step and have the entry listed as the variable name.

Hinweis  Note:

This step is optional if this variable has not yet been created in your system.

      7. In the Single line text box, enter „Operator“. This is required here as an identifier for the user name.
      8. Click OK.

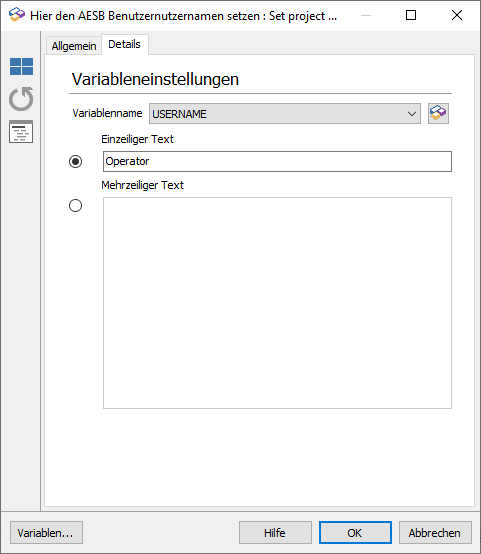

66_Use Case Client Commands_AESB Form Editor Set project variable Username_570.png

Making variable settings

To select and edit a Command Set project variable

  1. Select the Command Set project variable again.
  2. Double click on the Command and open the General tab.
  3. Under Description, enter the name of the action, e.g. Set the AESB user password here. Do not make any further changes to the other settings, they are not necessary.
  4. Switch to the Details tab.
  5. Optional: Create a new variable in the variable settings. To do this, click on the icon next to the list entries and a new window will open. Name the new variable "PASSWORD" and click on the plus sign. Click OK to complete this step.

Hinweis  Note:

This step is optional if you have not already created this variable.

      6. Select the Plain text option if you have not already done so. The clear text password will be added to this line later.
      7. Finish your work on this Command and click OK.

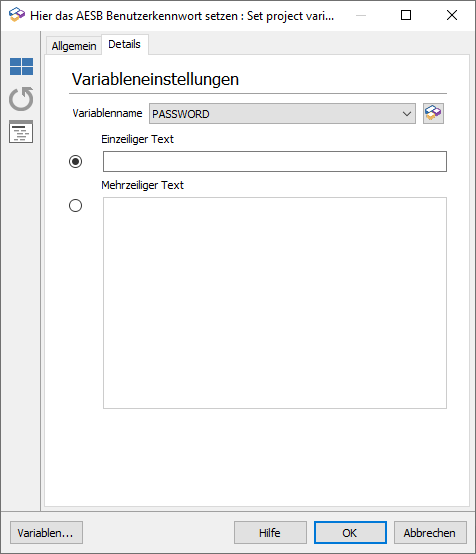

66_Use Case Client Commands_AESB Form Editor Set project variable Password_476.png

Defining variable settings

Opening and editing the Command Form Editor

Warning  Warning:

The Client Command Form Editor is extremely complex and should only be used if you have sufficient knowledge of programming under Delphi scripts and also know how to use an IDE (Integrated Development Environment).

You can edit the elements of the Form Editors using either the code view or the design view. To make it easier to understand, the following section deals with the visual design view only in isolated cases, and more with the code. This means that the explanations of the properties and events of the Object Inspector, which you can read here, are no longer necessary.

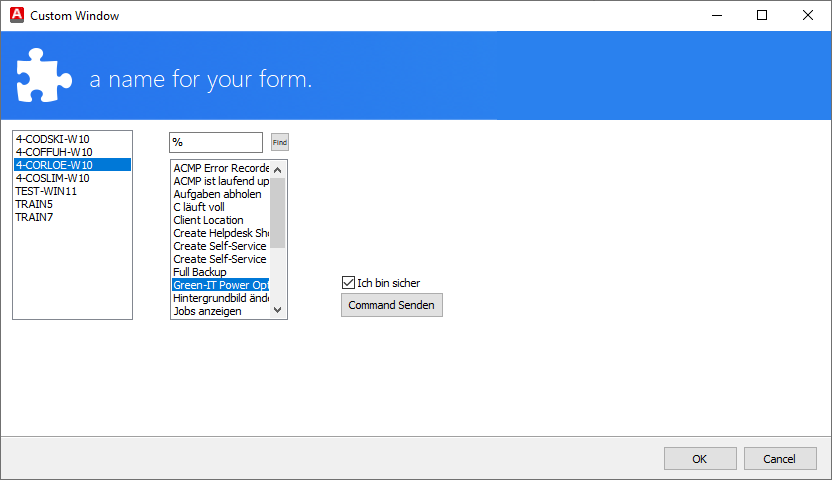

Use this Client Command to create an interactive form where you can assign a selected Client Command to a Client. To do this, proceed as follows:

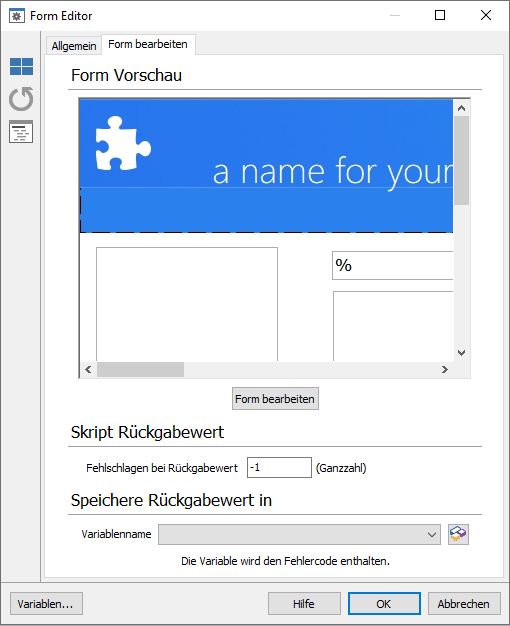

  1. Select the Client Command Form Editor (Dialogs > Form Editor).
  2. Double click on the Command, open the General tab and optionally customise the description of the actions. In this example the title remains Form Editor.
  3. Switch to the Edit Form tab.
  4. Click on the Edit Form button below the preview form. A new window opens for working with the Form Editor in the standard view, with some custom fields.

Hinweis  Note:

For more information on using the Form Editor or the IDE (Integrated Developer Environment) see here.

      5. Switch from the design view to the code view by clicking on the tab at the bottom (see illustration). The view will change.

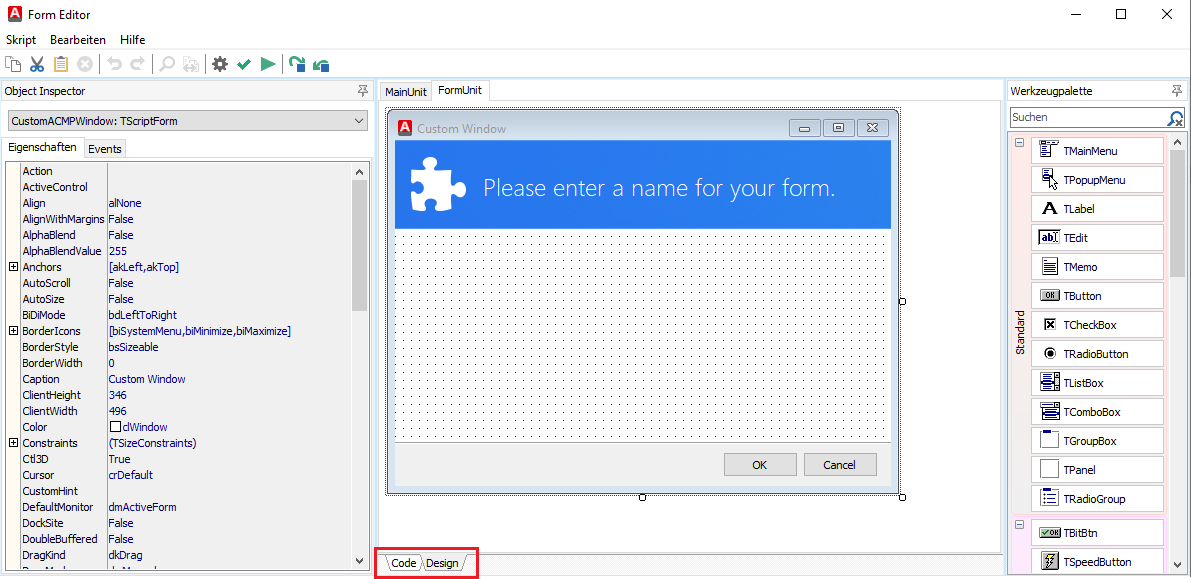

66_Use Case Client Commands_AESB Form Editor Standard_1191.png

Form Editor view

      6. Switch to the FormUnit tab if you are not already there. Here you can see the code from the upper Custom Windows window from the design view. This code now needs to be customised for your purposes.

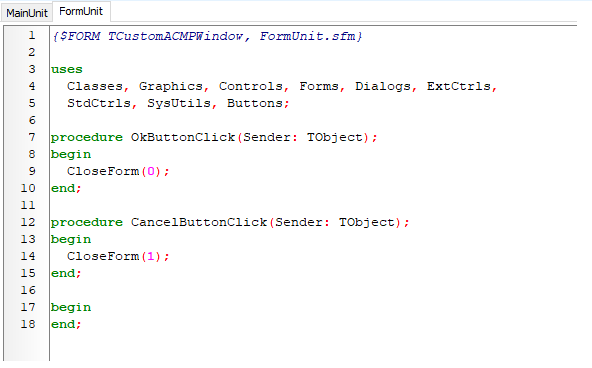

66_Use Case Client Commands_AESB Form Editor Code Ansicht_592.png

View of the code for the Custom Windows window

Customising the code

The code is divided into useful sections and explained below. Always insert the lines in the order shown here to ensure that the client commands work correctly. The form will be executed as it will be displayed later.

Hinweis  Note:

All information in the code that appears after a double slash is commented out and only serves to explain the following lines. They are not part of the execution.

Row sectionDescription
Row 1 - 13
{$FORM TCustomACMPWindow, FormUnit.sfm}

uses
  Classes, Graphics, Controls, Forms, Dialogs, ExtCtrls,
  StdCtrls, SysUtils, Buttons, AagonSQLQuery, AagonAESBV1,
  ComCtrls;
var
  LClients, LClientCommands, ResultMessages: TStringlist;
  IResult, Protocol, ExchangeType, AErrorCode, ConnectionTimeout: Integer;
  Server, Port, SClientID, SClientCommandID, MessageID, AAckMessages, AResult, Username,
  Passwort, ConnectionString, VirtualRouter, RoutingKey, Tag, CallbackVirtualRouter, CallbackRoutingKey,
  TargetConnectionVariable : string;


These rows define the display of the Form Editor for the user and describe what the display is filled with and what type of content is generated (data type: string, row 12).

In the rows, units are added (uses, rows 3 - 6) and variables (var, rows 7 - 12) are declared, which can be filled at a later time. The respective variable type (e.g. TStringlist, Integer or String) is shown after the variable names.



Row 14 - 21
//
function EscapeValues(Value: String) : String;
begin
  Value := '"'+StringReplace(Value,',','","')+'"';
  Result := StringReplace(Value, '","","', ',');
end;

//		This function is required to use certain special characters in strings. Some special characters in the string have a special meaning for the program: If you want to display these special characters, you must "escape" them. When escaping, the special character to be displayed is preceded by the same character or a specific other character, such as a "\".
Row 22 - 45
function SetAESBConfig;
begin
  Protocol := 1; // HTTP (0) / HTTPS (1)
  ConnectionTimeout:= 30; // Timeout in Sekunden
  ExchangeType:= 1; // Direct (0) / Routing (1)
  ResultMessages.Clear();
  AAckMessages:= '';
  AResult:= '';
  AErrorCode:= 0;
  IResult:= 0;
  Server:= '127.0.0.1';
  Port:= '3900';
  Username:= GetVarContent('USERNAME');
  Passwort:= GetVarContent('PASSWORD');
  TargetConnectionVariable:= 'CONNECTION';
  ConnectionString:= '';
  MessageID:= '{43584358-4358-4358-4358-435843584358}'; //hier kann eine beliebige GUID verwendet werden
  VirtualRouter:= 'VCMN';
  RoutingKey:= '?.Aagon.Components.ACMPServer.*';
  Tag:= 'ICQL';
  CallbackVirtualRouter := '';
  CallbackRoutingKey := '';
end;


In this section, the variables for the AESB service function (function SetAESBConfig, row 22) are defined and filled with values. The function is required later (from row 142), but you must already configure it at this point.

Fill the rows of the function as follows:

Row 24: Enter the type of protocol here. The value 0 stands for an HTTP page, 1 for an HTTPS page. Insert a 1 here, as this is an encrypted request.

Row 25: Specify a number of seconds when the request to the AESB runs into a timeout. The default value "30 seconds" was specified here.

Row 26: The ExchangeType can either be filled with the type "Direct (0)" or "Routing (1)". The latter option is selected here.

Row 27: ResultMessages.Clear() deletes the string list.

Rows 28 - 29: The two variables AAckMessages and AResult can be left clear. To do this, enter '' after the equals sign.

Rows 30 - 31: The AErrorCode and IResult are each filled with the value 0.

Row 32: Enter the name or IP of the AESB Server you want to connect to. In this example it is '127.0.0.1'.

Row 33: Enter the port number you need for the connection (here: '3900').

Row 34: The GetVarContent function is used here, which refers to the project variable ('USERNAME'). The project variable must be created and filled outside the Form Editor in the Client Commands themselves.

Row 35: The GetVarContent function is used here, which refers to the project variable ('PASSWORD'). This project variable must also be created and filled outside the Form Editor in the Client Command itself.

Row 36: The variable TargetConnectionVariable must be filled with the value 'CONNECTION'. The protocol requires this type for this type of connection (type: Connection).

Row 37: The value of the ConnectionString remains clear (' ') and will be filled with values later on.

Row 38: The MessageID is a GUID that can be exchanged and used as desired. When entering it, however, it is important that it follows the same input scheme: The number of digits must remain the same (8-4-4-4-8 digits each).

Row 39: The value 'VCMN' must be entered for the VirtualRouter. This is a virtual section within the AESB in which the ACMP Server is located. As this example communicates with the ACMP, this router must be specified.

Row 40: The RoutingKey specifies where the entered values are to be sent. Accordingly, the ACMP Server that is to receive the entries must be entered here. In this example it is called '?.Aagon.Components.ACMPServer.*'. The question mark and the asterisk both represent a wildcard. The asterisk represents the ACMP Server ID. If you have several ACMP Servers connected to the AESB, you can also enter the ID of one Server to route the data only to it.

Row 41: The input row Tag describes the type of message. As the ICQL protocol is used here, the value to be entered must be 'ICQL'.

Lines 42 - 43: The virtual router (CallbackVirtualRouter, row 42) and routing key (CallbackRoutingKey, row 43) are displayed here. No response is required, so a '' is sufficient as a clear value after the equals sign in both rows.

Row 46 - 55
function GetClientID : String;
var
  Ltemp : TStringList;
begin
  LTemp := TStringList.Create();
  LTemp.CommaText := LClients.Strings[LBClients.ItemIndex];
  Result := LTemp.Values['CLIENTID'];
  LTemp.Free();
end


The GetClientID function, with a return value of the String type, is described in rows 46 - 50. The function determines the Client ID of the Client selected in the interface from the LBClients list.

Row 46: Start of the GetClientID function with a string as the return value.

Rows 47 - 54: The value LClients.Strings contains the index of the Client you have selected. With this index, the corresponding Client is selected from the LClients.Strings list and temporarily stored in a temporary variable. The return value of the function (row 52) is set to the value "Client ID" from the temporary variable and thus corresponds to the Client ID that you have chosen as the selected agent from the list. The working memory is released again via row 53.

Row 56 - 65
function GetClientCommandID : String;
var
  Ltemp : TStringList;
begin
  LTemp := TStringList.Create();
  LTemp.CommaText := LClientCommands.Strings[LBClientCommands.ItemIndex];
  Result := LTemp.Values['SCRIPTID'];
  LTemp.Free();
end


Rows 56 - 65 describe the GetClientCommandID function. The function determines the Client Command ID of the Client Commands selected in the interface from the LBClientCommands list.

Row 56: Start of the GetClientCommandID function with a string as the return value.

Rows 57 - 65: LBClientCommands.ItemIndex contains the index of the Client Command you have selected. This index is used to select the corresponding Client Command from the LClientCommands.Strings list and temporarily store it in a temporary variable. The return value of the function (row 52) is set to the value "Script ID" from the temporary variable and thus corresponds to the Client Command ID that you have chosen as the selected Client Command from the list.

The working memory is released via row 63 (LTemp.Free()).

Row 66 - 80
function CreateMessageBody : String;
var
  MessageBody : TStringList;
begin

  MessageBody := TStringList.Create();
  MessageBody.Add('<ICQL><ACMP><EnqueueClientCommand version="1">');
  MessageBody.Add('<TEnqueueClientCommandRequest_V1 xmlns:xsi="http:~/~/www.w3.org/2001/XMLSchema-instance">');
  MessageBody.Add('<ClientId>'+GetClientID+'</ClientId>');
  MessageBody.Add('<ClientCommandId>'+GetClientCommandID+'</ClientCommandId>');
  MessageBody.Add('</TEnqueueClientCommandRequest_V1></EnqueueClientCommand></ACMP></ICQL>');
  Result := MessageBody.Text;
  MessageBody.Free();
end

The rows 66 - 80 describe the functions for creating the message that is sent to the SICS / AESB. In the section where the MessageBody is defined and filled, the data type must first be defined. Row 72 contains various values that must be adhered to. ICQL stands for the format in which the SICS expects the request, as well as the value ACMP. EnqueueClientCommand specifies that a function is to be called to queue a Client Commands in version 1.

Rows 74 and 75 specify that the request must contain the Client ID and the GetClientCommandID as a day so that the recipients (in this case the ACMP Server) know which Client Command to send to which Client.

The return value (row 77) then contains the complete message. This is followed by a network share of the working memory via row 78.

Row 81 - 109
procedure GetClients;
var
  LSQL, LTemp : TStringList;
  I : Integer;
begin
  LSQL := TStringList.Create();
  LTemp := TStringList.Create();

// SQLStatement zum Ermitteln der Clients
  LSQL.Add('SELECT COMPUTERNAME, CLIENTID');
  LSQL.Add('FROM CLT_CLIENTS');
  LSQL.Add('WHERE ismanaged = 1');
  LSQL.Add('ORDER BY COMPUTERNAME');

// Leeren der Listbox der Clients
  LBClients.Clear();
  LClients.Clear;
// Ausführen des Statements zum Beziehen der Clients aus der DB
  SQLQuery(LSQL.Text,'','',LClients,true,30);

  for i := 0 to (LClients.Count-1) do
    begin
      LTemp.Commatext := EscapeValues(LClients.Strings[i]);
      LBClients.Items.Add(LTemp.Values['COMPUTERNAME']);
    end
  LSQL.Free();
  LTemp.Free();
end;


Rows 81 - 109 (procedure GetClients) retrieve the agents from the database and save them in the left box, which is filled with the entries directly when the window is started. To do this, two lists are first defined and then created (86 and 87). The SQL Query/SQL statement is then assembled and filled with values, which enables the Clients to be determined. Only the computer name and the Client ID are retrieved from the CLT_Clients table. The condition ismanaged=1 ensures that only managed agents are involved. The list returned by the SQL server is sorted according to the computer name (89 - 94). The list box is emptied once before it is filled to prevent entries from still being present (96 and 97).

The SQL Query function applies the SQL statement and writes all clients to the global string list (LClients) (line 99). Lines 101 - 107 fill the interface of the list box that is displayed to you as a user. The list box is filled with the computer names that were previously retrieved from the SQL query. The last two rows (106 and 107) release the previously created lists.

Row 110 - 141
procedure GetClientCommands;
var
  LSQL, LTemp : TStringList;
  I : Integer;
begin

  LSQL := TStringList.Create();
  LTemp := TStringList.Create();
  LSQL.Add('DECLARE @Search nvarchar(200) = ' + QuotedStr(EDCCSearch.Text) + ';')
  LSQL.Add('SELECT DESCRIPTION, SCRIPTID');
  LSQL.Add('FROM SYS_SCRIPTS');
  LSQL.Add('WHERE HASCLIENTSCRIPT = 1');
  LSQL.Add('AND State = 7');
  LSQL.Add('AND DESCRIPTION LIKE @Search');
  LSQL.Add('ORDER BY DESCRIPTION');

// Leeren der Listbox der ClientCommands
  LBClientCommands.Clear();
  LClientCommands.Clear();
// Ausführen des Statements zum Beziehen der ClientCommands aus der DB
  SQLQueryEx(LSQL.Text,'','',LClientCommands,true,emOpen,30);

  for I := 0 to (LClientCommands.Count-1) do
    begin
      LTemp.Commatext := EscapeValues(LClientCommands.Strings[i]);
      LBClientCommands.Items.Add(LTemp.Values['DESCRIPTION']);
    end

  LSQL.Free();
  LTemp.Free();
end;


These rows (110 - 141) are used to fill the right box with the Client Commands entries by loading them from the SQL database and inserting them there. First, two lists are defined (116 and 117). To determine the Client Commands, an SQL Query is created in rows 119 - 124. Row 118 uses the search field of the interface to retrieve only Client Commands with this name from the database. Entering the wildcard "%" retrieves all Client Commands from the database, entering "Test_%" only retrieves all Client Commands that begin with "Test_" in their name.  (LSQL.Add('DECLARE @Search nvarchar(200) = ' + QuotedStr(EDCCSearch.Text) + ';')).

The list box and the global list of client commands are emptied via lines 127 and 128. The statement is then executed via the SQL query, whereby the retrieved client commands are written to the global string list (LClientCommands). Lines 132 - 136 fill the surface of the list box with the description (name) of the client command that was previously retrieved from the SQL query. The rows 138 and 139 release the functions again.

Row 142 - 151
procedure FormActivate;
begin
  LClients := TStringList.Create();
  LClientCommands := TStringList.Create();

  ResultMessages := TStringList.Create();
  GetClients;
  SetAESBConfig;
end;
    		Procdure FormActivate (rows 142 - 151) is called when the window is created. The global lists LClients and LClientCommands are created first (144 and 145). The GetClients method retrieves all Clients from the database and displays them in the interface (see upper function) (148). The SetAESBConfig function is called in row 149 and sets all variables that were previously set by you and that are necessary to communicate with the AESB (see function above).
Row 152 - 160
procedure OkButtonClick(Sender: TObject);
begin
  LClients.Free();
  LClientCommands.Free();

  ResultMessages.Free();
  CloseForm(0);
end;


The function in rows 152 - 160 is called when the OK button is pressed. All lists are cleared so that there are no more entries in LClients or LClientCommands. Row 158 CloseForm(0) closes the form with the parameter 0.

Hinweis  Note:

You can enter any integer as a parameter in the brackets. By default, a -1 means that this block has failed. This number (-1) can be set when starting the Form Editor. If the CloseForm(-1) function is then called, this block will cause the Client Command to fail and no continuing Commands will be executed after this block.

Row 161 - 169
procedure CancelButtonClick(Sender: TObject);
begin
  LClients.Free();
  LClientCommands.Free();

  ResultMessages.Free();
  CloseForm(1);
end;
  		Rows 161 - 169 are called when the cancel button is pressed. As in the previous section, all lists are cleared and the Closeform (row 167) is filled with the parameter 1 in order to show a better distinction between the OK and Cancel button, whereby this value does not represent an error. This parameter can be used in the Client Command as the return value of the form to distinguish whether the OK or cancel button was pressed.
Row 170 - 176
procedure CBSureClick(Sender: TObject);
begin
  if ((CBSure.Checked) AND (LBClients.ItemIndex > -1 ) AND (LBClientCommands.ItemIndex > -1 ))
  then BtnSend.Enabled := True;
  Else BtnSend.Enabled := False;
end;


This line section is called when the CBSure checkbox is clicked ("I am sure"), which the user must enable before sending a Command. The process procedure CBSureClick(Sender:TOBject) (from row 170) ensures that the following conditions are met (171 - 175) and that the Send Command button is enabled as a result. The condition is:

If CBSure (true) (checkbox checked), a Client from the left box and a Client Command from the right box have been selected (ItemIndex must be larger than -1; so a selected item must be selected), then the Send Command button is enabled (BtnSend.Enabled :=True). Otherwise, the button is disabled on Else.

Row 177 - 194
procedure BtnSendClick(Sender: TObject);
var
  AESBMessage : String;
begin
  AESBMessage := CreateMessageBody;
  AddSICSConnectionV1(Protocol,Server,Port,Username,
  Passwort,ConnectionTimeout,TargetConnectionVariable,false);
  ConnectionString := GetVarContent('CONNECTION');
  IResult := SICSPublishV1(ConnectionString, MessageID, VirtualRouter, RoutingKey, ExchangeType, Tag,
  AESBMessage, CallbackVirtualRouter, CallbackRoutingKey, ResultMessages, AAckMessages, AResult, AErrorCode);
  if (IResult = 0) then
  begin
    ShowMessage('Command has been send');
    CBSure.Checked := false;
    BtnSend.Enabled := false;
  end;
  Else Showmessage('An Error has occured: '+InttoStr(IResult));
end;


The function procedure BtnSendClick(Sender: TObject) is defined in the following rows and then executed as soon as the user clicks on the button. The variable (AESBMessage), whose data type is a string, is declared (row 179).

The function CreateMessageBody is then called. In this function, the MessageBody is completely assembled once and returned as a return value. This return value is in turn inserted into the AESBMessage variable (row 181). The SICS connection is then created, which consists of the various parameters and the AddSICSConnectionV1 function. In line 183, the ConnectionString variable is filled with the GetVarContent function. The function retrieves the value from the client command variable with the name (parameter of the function) "Connection". Line 184 continues with the IResult variable, where the result of the function is saved as SICSPublishV1. The various parameters are sent to the AESB. This is followed by an if. then clause follows: The result (IResult) of the function is checked to see if the result is 0 and therefore there were no errors. The ShowMessage function is called, which opens a dialog box with the text "Command has been send" (line 188). In the next two lines, the properties "Checked" for the checkbox and "Enabled" for the button are set to False. This restores the objects to their original state. If an error has occurred, the Else part is executed (line 192) and a dialog "An Error has occured" is displayed, as well as the result of IResult (the error code).

      7. Once you have inserted or customised all the relevant information in the code, you can run the form from the quick selection bar using the Start button image-20240205143129-1.png (F9). Note that this is not only a test to check for any syntax, spelling or logic errors, but also to send client commands to an agent. The following image shows the finished form as it may appear in your system.

66_Client Command_Use Case Form Editor Design Ansicht_832.png

Completed Client Commands in the Custom Window

      8. Close the open windows (Custom Window and Form Editor). You will be returned to the Form Editor interface and its preview.

      9. Check the value entered under Script Return Value. It should be the integer '-1'.

66_Use Case Client Commands_AESB Form Editor fertig_510.png

Form Editor preview

     10. Click OK.

     11. Save the finished Client Command and close the editor.

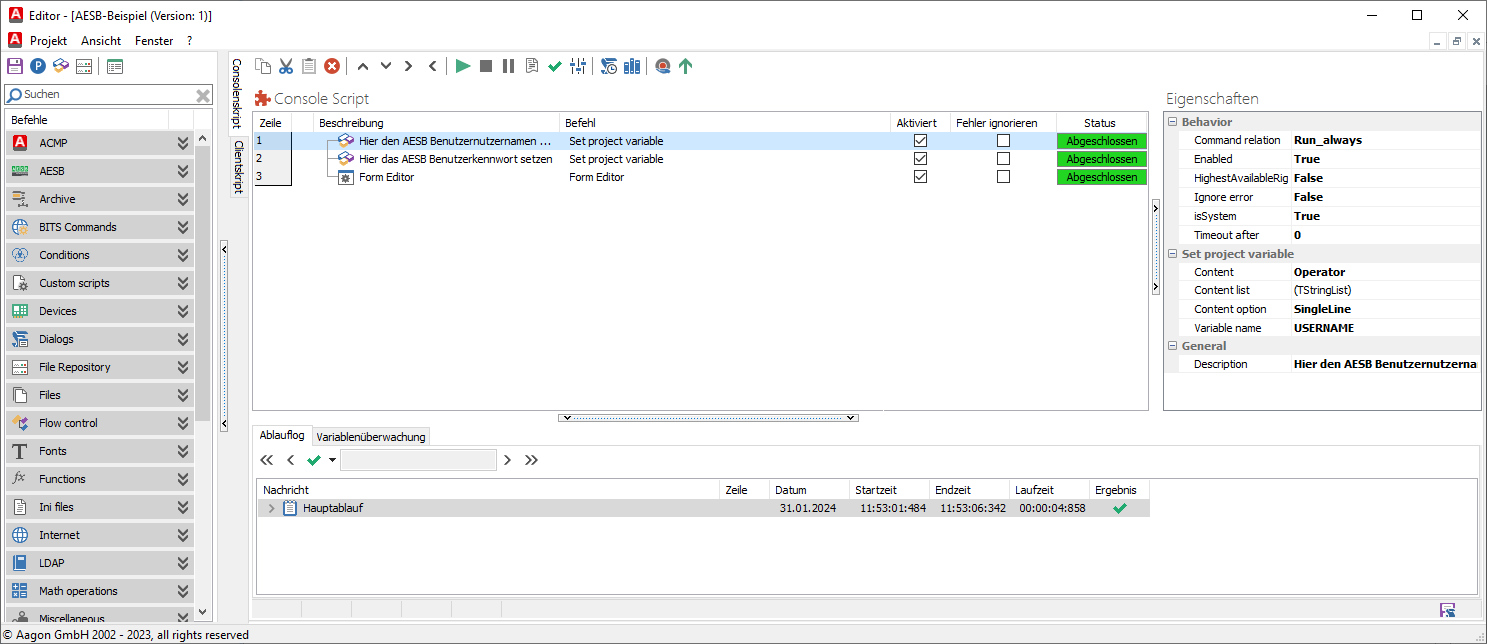

66_Use Case Client Commands_AESB fertiges Script_1487.png

Client Command Editor: Sending a Client Command statically to a Client using the Form Editor via AESB

Running through the Client Command phases

Before the Client Command can be used, it must go through the Test, Synchronise, Release und Execute phases. It is then possible to send the Client Commands statically to a Client via the AESB using the Form Editor.



© Aagon GmbH 2024
Besuchen Sie unsere neue Aagon-Community
